Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel

Brand Name : LBS

Model Number : Non-Standard

Certification : CCS

Place of Origin : Shijiazhuang Hebei China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 150 sets per month

Delivery Time : 15 to 30 working days, depends on order amounts and specification

Packaging Details : Export standard wooden case

Product name : LEBUS grooved cabel winch drum

Drum Quantity : Single

Drum Design : lebus grooved

Material : Q355D

Application Range : towing winch

Rope Capacity : 500mm

Rope Diameter : 10mm

made of : Steel plate or pipe

Contact Now

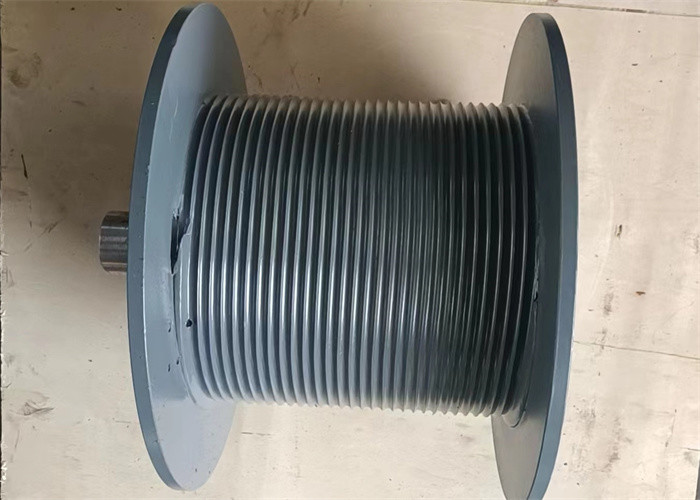

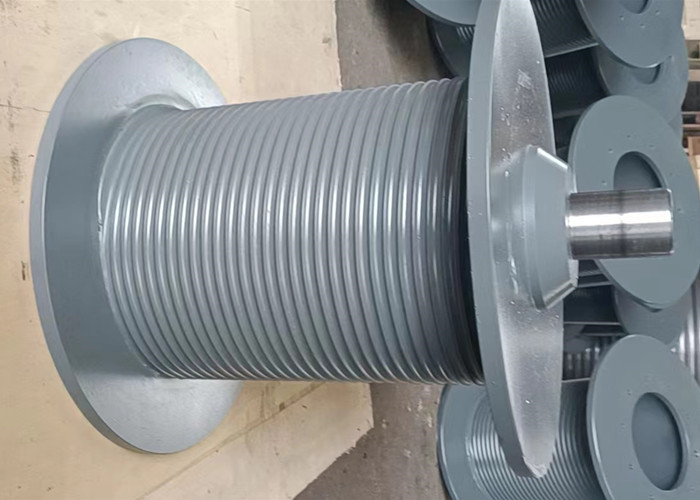

Q355D Customizable LEBUS Groove Wire Rope Reel, Cable Winch Drum

overview

Product name	Q355D Customizable LEBUS Groove Wire Rope Reel Cable Winch Drum
Drum Quantity	Single Or Double
Drum Design	With shaft
Material	Q355D
Size	Customization
Application Range	Construction Mining Terminal operation
Power Source	Electric and hydraulic
Rope Capacity	100~300M

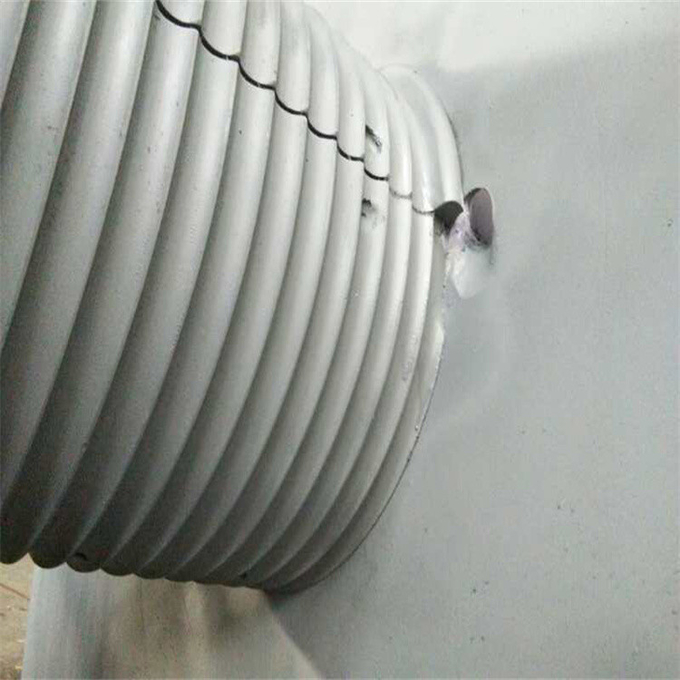

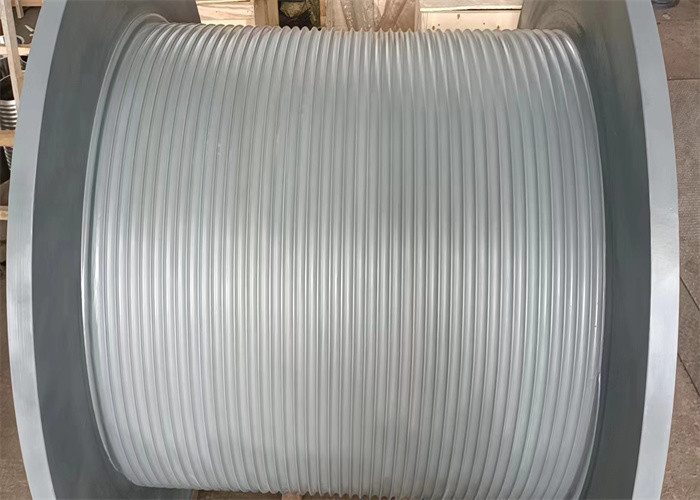

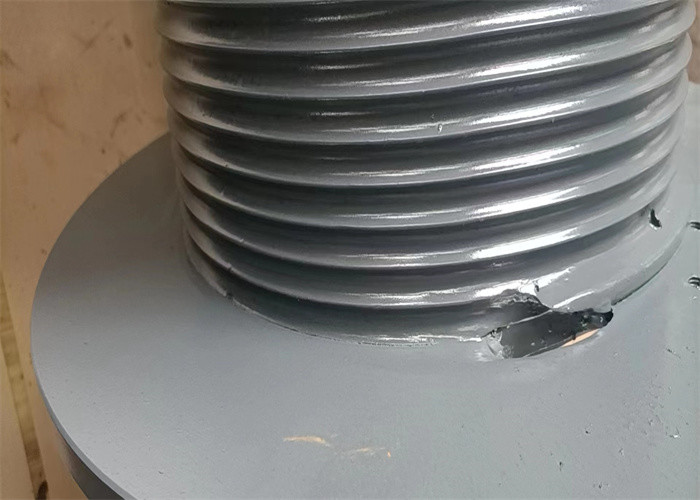

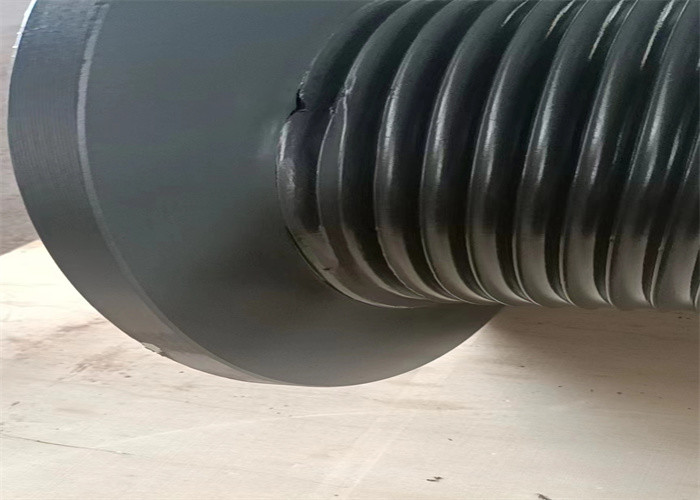

LEBUS rope groove

With the development winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral angle of the parallel section and the climbing section will affect the effect of drum rope winding, because this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.

Technical Parameters

No:	Wire diameter(mm)	Pulling Force(KN)	Rotation Direction	Drum Diameter(mm)	Drum Length(mm)
1	3~8	3~10	Lefthand,Righthand	>160	<1000
2	10~16	12~20	Lefthand,Righthand	>320	<1000
3	18~24	20~80	Lefthand,Righthand	>480	<1000
4	26~32	100~120	Lefthand,Righthand	>640	<1000
5	34~40	150~200	Lefthand,Righthand	>800	<1000
6	42~50	240~400	Lefthand,Righthand	>1000	<1000

Processing equipment

CNC machining center
