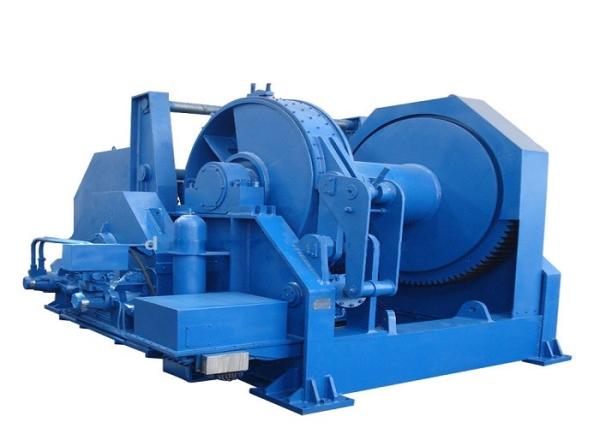

Offshore Equipment High Power 30T Marine Hydraulic Crane Winch
Hydraulic crane winch
Hydraulic hoist did not take, directly by the hydraulic motor, control valve, cylinder, the end of the supporting shaft and so on, these can be selected according to the needs of customers, can be widely used in conveyor tensioning device, engineering machinery hoisting machinery such as crane, crawler crane, overhead working truck, crane, forestry and the port of ship class such as port crane, floating crane, dredger, Crane, boat derrick, and can be used for large lifting equipment such as oil drilling rig, offshore oil drilling platform, pile machinery rotary digging drill, rock drill, core drill, hydrostatic pile press and so on.
| Product name | Hydraulic crane winch |
| color | yellow /black /gray/as customes |
| size | 35*35*20 |
| Pull | 8/10/15/20 |
| layer | 1-7 |
| Wire rope capacity | 17-230 |
| Hydraulic motor | As customes |
| Planetary reduction ratio | I=5.23 |
| L/min | As customes |
Product Outline Drawing:
Product parameters
| Model | Pull force (KN) | Rope speed (m/min) | Drum bottom Diameter (mm) | Difference of working pressures (Mpa) | Rope capacity (mm) | Diameter of steel rope (mm) | Model of hydraulic motor |
| LBSW-DN10-10-00 | 10 | 0-40 | 250 | 13 | 100 | 10 | C2.5-5.5 |
| LBSW-DN12-18-00 | 12 | 0-40 | 250 | 12.5 | 100 | 12 | C2.5-5.5 |
| LBSW-DN14-20-00 | 20 | 0-35 | 300 | 12 | 100 | 14 | C2.5-5.5 |
| LBSW-DN15-30-00 | 30 | 0-30 | 350 | 14 | 100 | 15 | C3-5.5 |
| LBSW-DN22-65-00 | 65 | 0-35 | 550 | 15 | 200 | 22 | C5-5 |
| LBSW-DN24-80-00 | 80 | 0-30 | 600 | 16 | 200 | 24 | C5-5.5 |
| LBSW-DN30-120-00 | 120 | 0-30 | 750 | 16 | 200 | 30 | C7-5.5 |
| LBSW-DN38-180-00 | 180 | 0-30 | 860 | 16 | 200 | 38 | C7-5.5 |
Good equipment standard of winch
The sound standard of winch should be carried out according to the corresponding national standard.
The condition of the winch belongs to the condition of the equipment. Its basic contents include: (1) good equipment performance; (2) Normal operation of equipment, such as parts wear, corrosion degree does not exceed the technical standards, lubrication system is normal, equipment operation without overtemperature, overpressure phenomenon; (3) The consumption of raw materials, fuel and oil is normal, and there is no leakage of oil, water, steam and electricity. Specific standards should also be set for different types of equipment.
